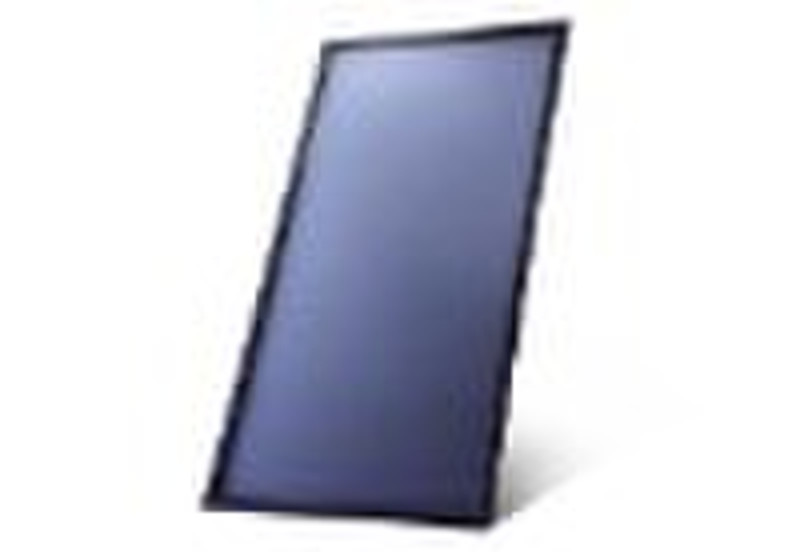

solar panel collector
Penny Ma
Contact person
Basic Information
| Place of Origin | Zhejiang China (Mainland) |
|---|---|
| Brand Name | Wanshifa |
| Model Number | GT5818 |
Solar panel collector 1.Simple installation, No maintenance, Effective operation 2.Anti-freezing, operation temperature is -20 120 degree centigrade Solar panel collector 1.Dimension: 2000(L) x 1000(W) x 85 (T)mm 2.Gross Area: 2.03square meters 3.Aperture Area: 1.84 square meters 4.Absorber Area: 1.73 square meters 5.Gross weight: 41.5KGS 6.Cover material: Low-iron tem pered glass 7.Cover Transmission: 91%-92% 8.Absorber: Black chromed 9.Construction Type: Fin & Tube ( Ultrasonic Welding) 10.Header tube size: Φ22mm*0.6mm, 2pcs, Copper TP 2 11.Riser tube size: Φ10mm*0.45mm, 8pcs, Copper TP 2 12.Insulation material: Fiber glass insulation 13.Insulation Thickness back: 50mm 14.Frame: Aluminum Alloy 15.Max. operation Temperature: 200Celsius Degree 16.Max. Working Pressure: 1.0 Mpa 17.Testing pressure: 1.5Mpa
Delivery terms and packaging
Packaging Detail: carton or pallets outside,and plastic bag and foam box inside. Delivery Detail: with 10days after receive the payment.
Port: Shanghai/Ningbo
Payment term
Letter of credit
Telegraphic transfer
Western Union
-
Payment Methods
We accept:
